| Intended Primariy for use with service water, this valve meets specification of KSB 2332(JIS2062 BS5163) KSB 2334 Available in several moodels, Operated manually, by headsstock, or by cilnder. |
 |
 |
|
|
| 1.Size |
Vertical type : 50m/m-1,200m/m
Horizontal type: 400m/m-1,500m/m
|
|
2.Working
Pressure |
Max. 10 ㎏f/㎠(16㎏f/㎠, 20㎏f/㎠) |
|
| 3.Valve End |
Flange(KS D4309, ISO R 13)
Other standards are available on request.
|
|
|
|
5.Direction of
Opening |
Counter-clockwise to open. |
|
| 6.Test Pressure |
Leakage test-----10 ㎏f/㎠
Shell test-----17.5㎏f/㎠(50~350m/m)
14㎏f/㎠(400~1,500m/m)
|
|
| 7.Main Materal |
Body : Cast Iron(GC 200)
Ductile Cast Iron(GCD450)
Disk : Cast Iron(GC 200)
Ductile Cast Iron(GCD450)
Stem : High tensile brass(C 3771-BE)
High tensile brass(C-6782-BE)
Stainless Steel(STS 304, 403)
Seat : Bronze Casting(BC 6)
Stainless Steel(STS 304, 403)
※The Other materials are avaiable request.
|
|
|

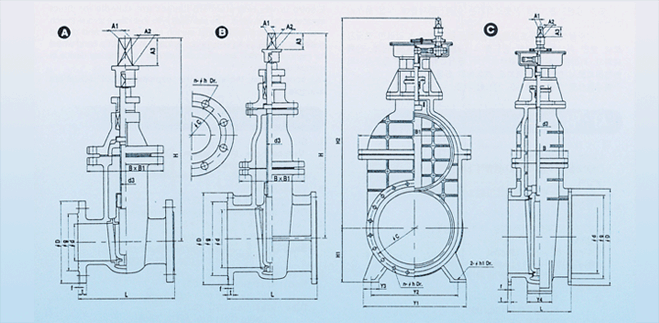

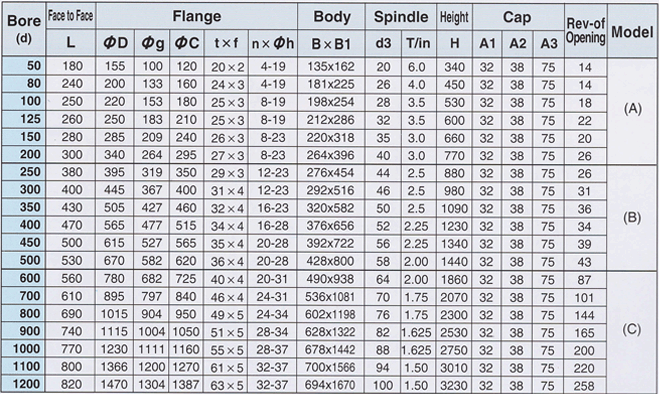

| Dimensions of Sluice Valves / Ductile Cast iron Sluice(Vertical Type) |
|
|
|
|
| Unit : mm |
|
 |
|
|
|
|
|
 |
