| Electro drives width standard flanges are suitadle for direct installation to our vales. The standard type includes a torque switch and a linit switch and a limit switch for both open and closed positions as well as an emegency actuaror in form of a hand-wheel for manual opeeration and interlock switches for the safety device in manual operation. As special type, there are also "explosion proof" actuatiors available. |
 |
 |
|
|
| 1.Size |
Vertical type : 50mm-1,500mm
|
|
2.Working
Pressure |
Max. 10 ㎏f/㎠ |
|
| 3.Valve End |
Flange(KS D4309,ISO R 13)
Other standards are available on request.
|
|
| 4.Test Pressure |
Leakage test-----10 ㎏f/㎠
Shell test-----17.5㎏f/㎠(50~350m/m)
14㎏f/㎠(400~1,500m/m)이상
|
|
| 5.Main Materal |
Body : Cast Iron(GC 200)
Ductile Cast Iron(GCD450)
Disk : Cast Iron(GC 200)
Ductile Cast Iron(GCD450)
Stem : Stainless Steel(STS 304, 403)
Chromium Molybdenum Steeis(SMC 440)
Seat : Bronze Casting(BC 6)
Stainless Steel(STS 304, 403)
※ he Other materials are avaiable request.
|
|
|

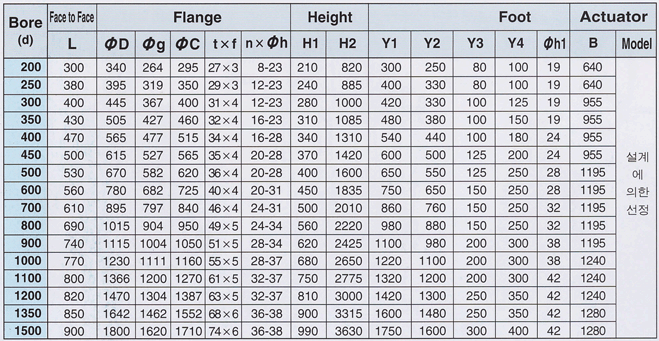

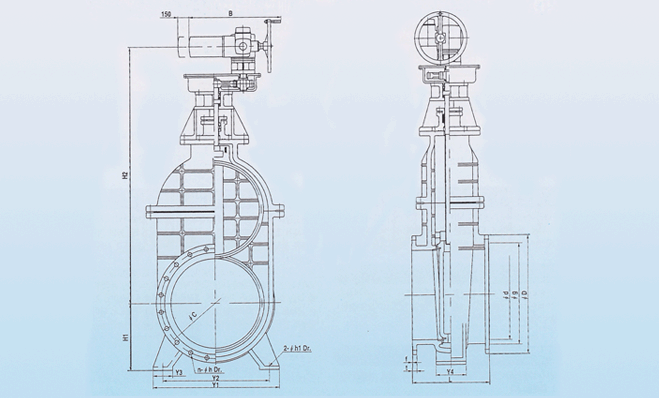

| Dimensions of Electric Drive Sluice Valves |
|
|
|
|
| Unit : mm |
|
 |
|
|
|
|
|
 |
