A-disc- shaped sluice gate with outside-screw rising or non-rising stem. Especially suitable for water intakes outlets and the like operated from a gear stock, hydraulic and oil pressure cylinder or electric moter.
1.Size Norminal dia : 200mm~2500mm
2.Fluid Service water, Sewage, Sea water etc.
3.Working
   Pressure		 14psi (10maq)
4.Main Materal

Body : Cast Iron(GC 200)
         Ductile Cast Iron(GCD450)
Disk : Cast Iron(GC 200)
           Ductile Cast Iron(GCD450)
Stem : Stainless Steel(STS 304, STS 403)
Seat : Bronze Casting(BC 6)

※The Other materials are avaiable request.

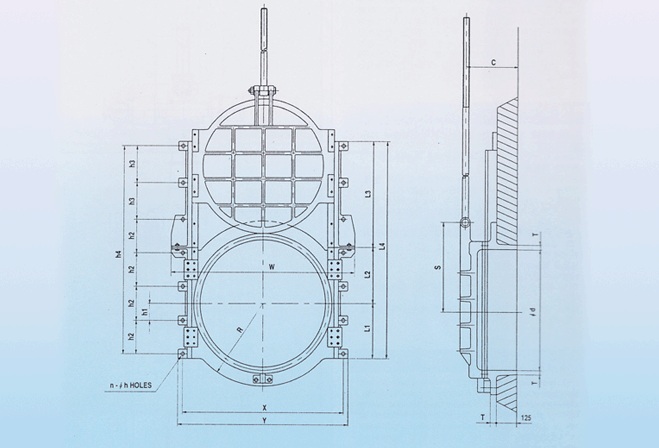

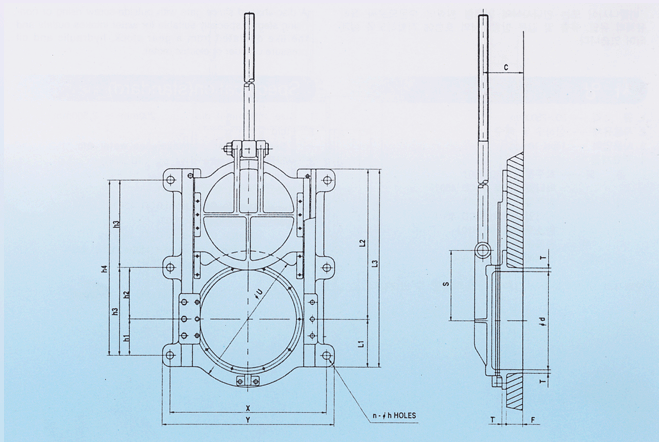

Sluice Gates(Circular Type)

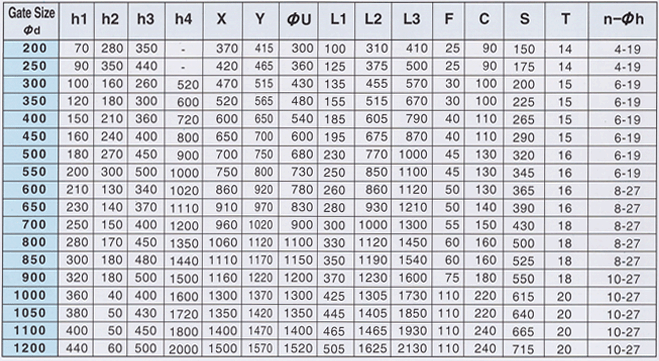

Φ200~1200
Unit : mm
