1.Size Norminal dia : 200~4000mm
2.Fluid Sewage, Service water est.
3.Working
   Pressure		 14psi (10mAq)
4.Main Materal

Body : Steel Plate(SS 400)
       Cast Iron(GC 200)
Disk : Steel Plate(SS 400)
       Cast Iron(GC 200)
Seat : Bronze Casting(BC 6)
Stem : Stainless Steel(STS 304, STS 403)

※The Other materials are avaiable request.

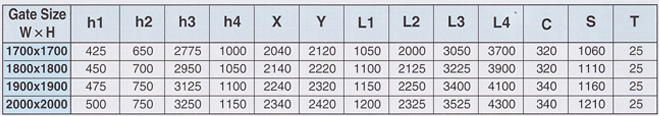

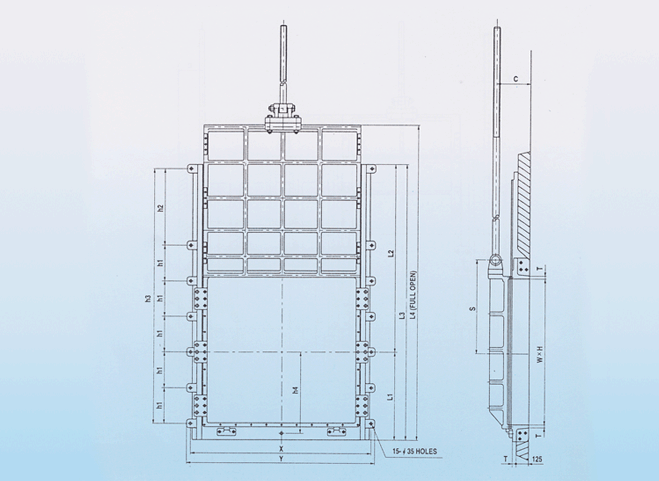

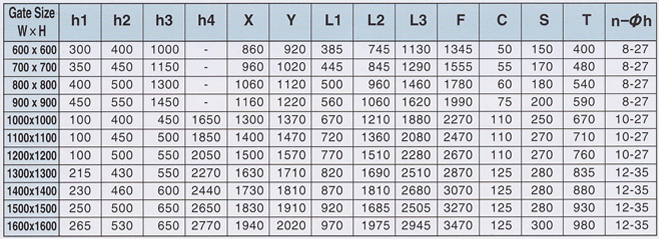

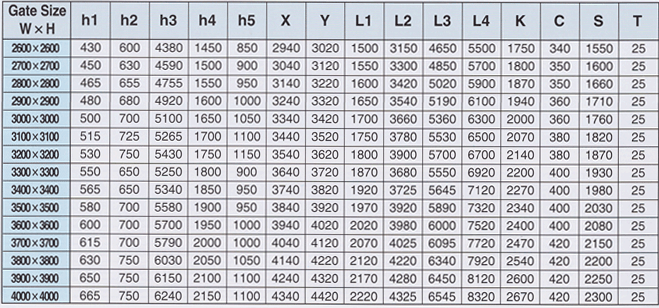

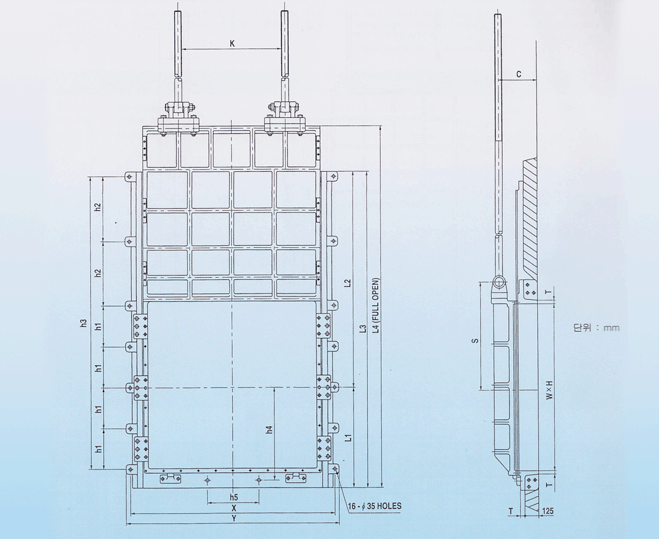

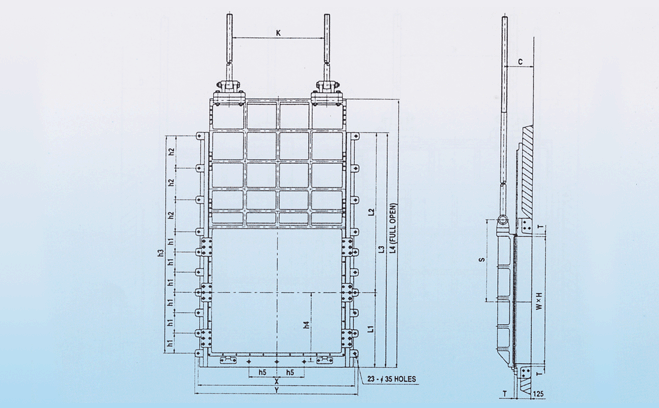

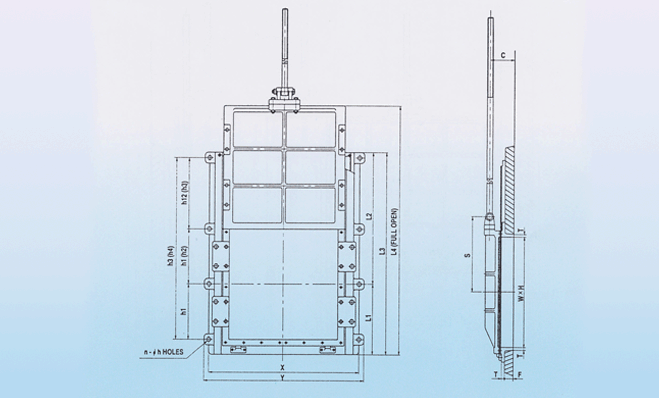

Sluice Gates (Rectagular Type)

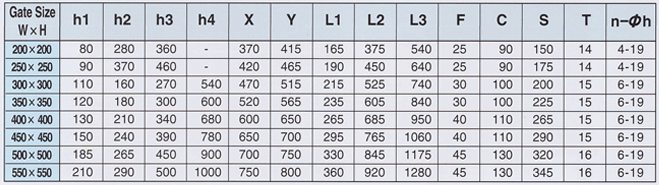

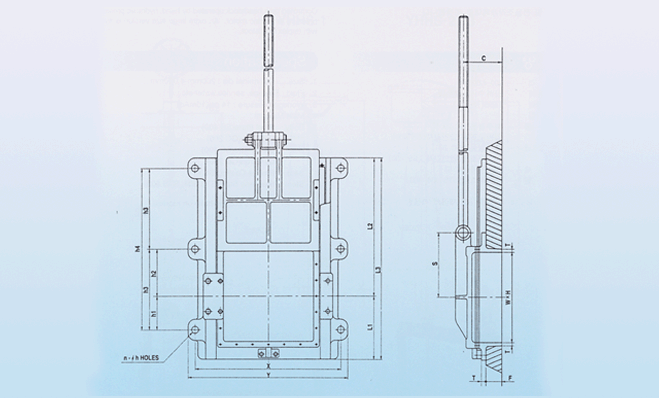

Φ200~550

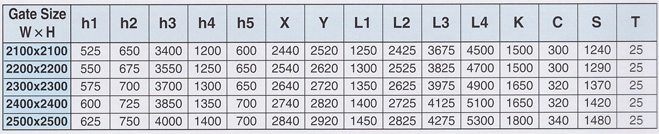

Unit : mm
